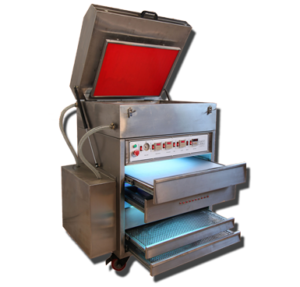

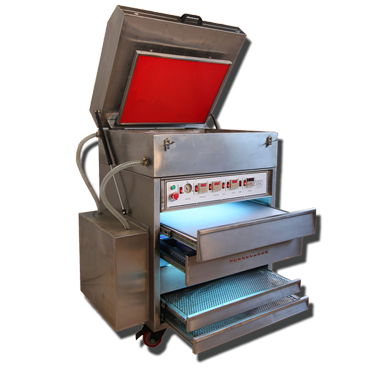

Water Wash
Flexo + Water Circulation + Filteration
- (Model : @C-A2SSF / @C-A3SSF / @C-A4SSF / @C-2430 / @C-3040)
- Plates suitable : Label, film, paper, corrugated board, paper carton,  bag, Tetra pak etc. Exposure + Washout + Drying +Treatment (Light finishing) in complete set @C-A2SSF
- All stainless steel.
- Exposing+drying+washout+treatment.
- With water circulation & filtration system.
- Simple operation, best plate result
| MODEL | UNIT | MEASUREMENT(cm) | N/W | G/W | WATT |
| @2430 ET | EXPOSING+TREATMENT | 132 x 120 x 60 |
250KG
|
350KG |
1.5KW
|
| @C-A2SSF | EXPOSING+DRYING +WASHOUT+TREATMENT |
120 x 100 x 125 |
235KG
|
335KG |
2.8KW
|
| @3040 ET | EXPOSING+TREATMENT | 145 x 114 x 76 |
300KG
|
450KG |
2.5KW
|
| @C-A3SSF | EXPOSING + WASHOUT + TREATMENT | 940 x 770x 400 |
85KG
|
125KG |
1.2KW
|
| @C-A4SSF | EXPOSING+DRYING | 760 x 650 x 400 |
56KG
|
90KG |
1KW
|
- Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
- Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicato
- High temperature water washout
- With water circulation system
- Special arrangements of brush
- With residue filtration system
- Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
- Unique air circulation and exhaustion design
- Over heat sensor for safety and protection
- Chemical free operation, simple, easy and save
- Digital timer for light finishing control
- Philips UVC high intensity lamps equipped
- With powerful air exhausting for big size models
