Regular Line Plate Making Model : @2430 / @3040 / @4050
- @ 2430 = 24 x 30 inch (610 x 762 mm)
- @ 3040 = 30 x 40 inch (762 x 1016 mm)
- @ 4050 = 40 x 50 inch (1016 x 1270 mm)
- Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
- Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator
- Flat washout unit 3 in 1 for easy access
- Automatic control of temperature precisely
- Special bristle good for all kind plates wash
- Excellent result for 200 LPI 1% reproduction
Exposure + Treatment Unit (ET)

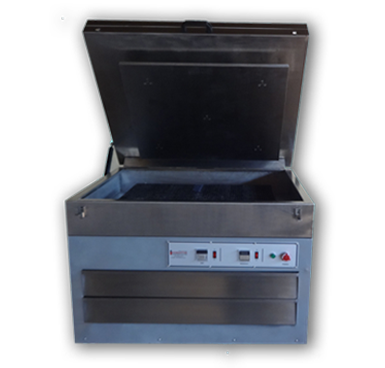

Washout + Drying Unit (WD)
- Drying Drawer with uniform heat Distribution
- Temp. Adjustable by a precise Controller
- Unique Air Circulation and Exhaustion Design
- Over Heat sensor for Safety & Protection
- Chemical Free Operation, Simple Easy & Safe
- Digital Timer for light Finishing time Control
- Equiping With Philips High Intensity Lamps
- With Powerfull Air Exhausting for Bad Odour
(cm) | @2430WD | @2430ET | @3040WD | @3040ET | @4050WD | @4050ET |
Machine Size | 120X110X90 | 132X120X60 | 130X130X100 | 145X114X76 | 150X100X90 | 170X130X70 |
Power | 2.8 kw | 1.5 kw | 3 kw | 2.5 kw | 5 kw | 3.5 kw |
Net Weight | 400 Kg | 250 Kg | 500 Kg | 250 Kg | 700 Kg | 400 Kg |
Gross Weigt | 500 Kg | 350 Kg | 600 Kg | 350 Kg | 850 Kg | 500 Kg |
Crate Size | 140x130x110 | 152x140x80 | 150x150x120 | 165x135x95 | 170x120x110 | 190x150x95 |
