Letterpress Plate Making - Innovative Flexotech

Letterpress Flexo Photopolymer

Special Features @flexo Photopolymer Plate making machine
for Letterpress Plate Making Equipment
(Model : @A2SS / @A3SS / @A4)

Plates suitable :

TORAY / Trelief, TOYOBO/ Printight, OHKA / Miraclon, BASF / Nyloprint etc.

For printing :

Letterpress,dry offset, tag, label, computer form, tampo, pad and vanish coating etc. Exposure + Washout + Drying 3 in one, all stainless steel made. ( Except @A4 )

Features of Exposure unit :

Instant light up Philips high intensity lamps
Unique digital timers for back/main exposure
Excellent lamps cooling / exhausting system
Quick vacuum drawdown pump with indicator

Features of Washout unit :

Flat washout unit 3 in 1 for easy access
Special bristle good for all kind plates wash
Automatic control of temperature precisely
Excellent result for 200 LPI 1% reproduction

Features of Drying unit :

Drying drawer with uniform heat distribution
Temperature adjustable by a precise controller
Unique air circulation and exhaustion design
Over heat sensor for safety and protection

Models :

@A4
@A3SS
@A2SS
Exposure + Drying + Washout , 3 in 1.

Plates suitable :

Toyobo printight, Tokyo ohka miraclon, Toray torelief, Basf nyloprint etc.

For printing :

Letterpress, dry offset tag, lable, computer form, tampo, pad printing and vanishing

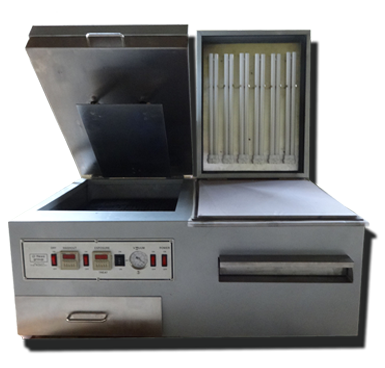

@A4LT/@A3LT For Label/Card/Pad/Stamp

@A4 / @A3LT-for letterpress
@A4 / @A3LR-for liquid resin
@A4 / @A3LT-for flexography
@A4 / @A3FB-for @FlexoBag

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@A4LT	EXPOSING+DRYING	760 x 650 x 400	56KG	90KG	1KW
@A3LT	+WASHOUT + TREATMENT	940 x 770x 400	85KG	125KG	1.2KW

( New modern design CAD/CNC cut body with outdoor A/C treatment / paint plus stainless steel tank all unit rust free. Warranty for ever free for first year.High intensity original Philips lamp good for 200LPI 1% dot reproduction )

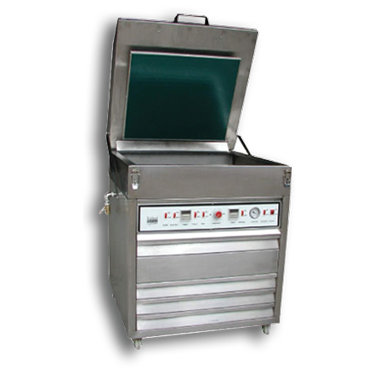

@A3SS

All stainless steel.
Exposing+drying+washout.
3 in one design very compack.
Simple operation, best plate result.
Whole system includes exposing unit, washout unit, drying unit.

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@A3SS	EXPOSING+DRYING+WASHOUT	600 x600 x 900	100KG	190KG	1.0KW

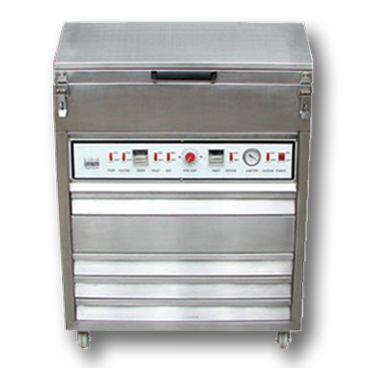

@A2SS

All stainless steel.
Exposing+drying+washout.
3 in one design very compack
Simple operation, best plate result
Whole system includes exposing unit, washout unit, drying unit.

MODEL	UNIT	MEASUREMENT(cm)	N/W	G/W	WATT
@A2SS	EXPOSING+DRYING +WASHOUT	900 x 900 x 1120	200KG	300KG	1.2KW
