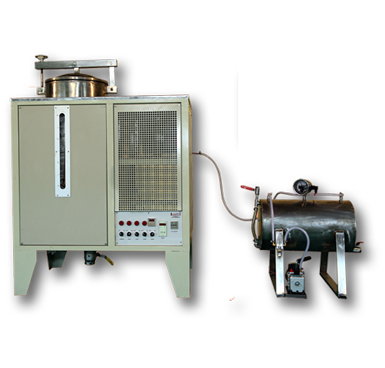

Solvent Distillation Unit
30 Ltr, 60 Ltr, 80 Ltr
@flexo 30L – RHB / @flexo 60L-RHB / @flexo 80L-RHB / @flexo 100L-RHB / @flexo 200L-RHB
Special Features Solvent recovery unit for photopolymer flexo plates
A. General description:
This is designed for recovery of flexographic photopolymer plate solvent washout chemical and any environmental green chemical with specialties of distilling and cooling, can be connected with in-line processor and any plate washout machine directly. With cold air circulation and drain out of residue for high speed recovery. Super recovering rate in the shortest time, is an ideal and high efficient recovery unit for flexographer.
B. Technical information:
Recovery volume : 60 / 80 liters
Power consume: 220V 4.65KW
Diathermic oil : 23 KG
Machine dimension: Main body: 1100x 780×1200 mm
Recovery rate: 85%
Recovery time : 3 ~ 4 hours
| cm | 30Ltr. | 60Ltr. | 80Ltr. | 100Ltr. | 200Ltr. |
| Recovery Valume | 30 | 60 | 80 | 100 | 200 |
| Machine Size | 96*61*94 | 110*78*120 | 130*88*130 | 150*98*150 | 250*170*230 |
| Power required | 220vAC 3.65Kw | 220vAC 4.65Kw | 220vAC 5.65Kw | 220vAC 6.65Kw | 380vAC 10Kw |
| Dia Themic Oil | 20Kg. | 28Kg. | 33Kg. | 40Kg. | 80Kg. |
| Temperature C | 50-180 | 50-180 | 50-180 | 50-180 | 50-180 |
| Recovery Rate | 85% | 85% | 85% | 85% | 85% |
| Net Weight | 130Kg | 160Kg | 200Kg | 300Kg | 400Kg |
| Gross Weight | 230Kg | 230Kg | 300Kg | 400Kg | 500Kg |
| Crate Size | 106*81*104 | 120*97*130 | 140*108*140 | 160*118*160 | 260*190*240 |
30 Ltr Solvent Distillation Unit
- Recovery Volume : 30
- Power Cosuption : 220v AC, 3.65Kw
- Dia Thermic Oil : 20 kg.
- Machine Dimention Machine Boady : 960mm x 610mm x 940mm
- Recovery Rate : 85%
60 Ltr Solvent Distillation Unit
- Recovery Volume : 60
- Power Cosuption : 220v AC, 4.65Kw
- Dia Thermic Oil : 28 kg.
- Machine Dimention Machine Boady : 1100mm x 780mm x 1200mm
- Recovery Rate : 85%
80 Ltr Solvent Distillation Unit
- Recovery Volume : 80
- Power Cosuption : 220v AC, 5.65Kw
- Dia Thermic Oil : 33 kg.
- Machine Dimention Machine Boady : 1300mm x 880mm x 1300mm
- Recovery Rate : 85%
